Product Description:

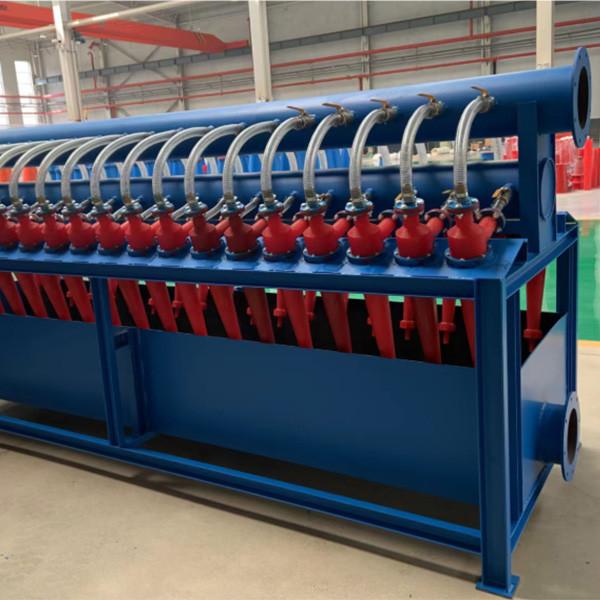

The hydrocyclone is a simple piece of equipment that uses fluid pressure to generate centrifugal force and a flow pattern which can separate particles or droplets from a liquid medium. These particles or droplets must have a sufficiently different density relative to the medium in order to achieve separation.
Cyclones are the most common equipment to control what size of materials exit the comminution (ball milling) circuit.
Hydrocyclones also find use in pharmaceuticals; agricultural applications, such as sand/manure separation; pulp and paper; potable water and wastewater treatment systems; degritting of spray water; etc.
Technical Parameters:
| Inner Diameter (mm) | Overflow Pipe (mm) | Underflow Pipe (mm) | Cone Angle (°) | Feeding Pressure (MPa) | Capacity (m3/h) | Particle Size (μm) |
| 200 | 40.50.55.65 | 16.20.24.28.32 | 15,20 | 0.05-0.4 | 40-64 | 40-100 30-100 |
| 150 | 30.35.40.45.50 | 8.10.12.14. 16.18.20.22 | 8.15.20 | 0.05-0.4 | 11-20 | 30-74 20-74 |
| 125 | 25.30.35.40 | 8.10.12.14. 16.18 | 7.15 | 0.05-0.4 | 250-360 | 74-200 |
Technical Parameters:
| Inner Diameter (mm) | Overflow Pipe (mm) | Underflow Pipe (mm) | Cone Angle (°) | Feeding Pressure (MPa) | Capacity (m3/h) | Particle Size (μm) |
| 750 | 240.260.280 | 120.140.160 | 20 | 0.03-0.4 | 400-500 | 74-250 |
| 660 | 180.200.220.240 | 80.110.150 | 20 | 0.03-0.4 | 250-360. | 74-220 |
| 610 | 160.180.200.220 | 90.100.110 | 20 | 0.03-0.4 | 250-360 | 74-200 |
| 500 | 130.140.160.220 | 35.45.50.65.70. 80.90.100 | 10.20.25 | 0.03-0.4 | 140-220 | 74-200, 74-150 |
Packing and Shipping:
Type of Packing:
| Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case. |
| Packed with fumigation package |
| Packed in plastic lorap, double bister and jute rope |
Support and Services:
Installation assistance
Maintenance and repair guidance
Operational troubleshooting
Training for operators and maintenance personnel
Customized solutions for specific applications
FAQ:
Q: What is the brand name of this hydrocyclone seperator product?
A: The brand name is UNIVEE.
Q: Where is this hydrocyclone separator product made?
A: This product is made in China.
